Feature Description

● 35A switching capability
● Contact arrangement:1A
● Provide the contact gap of the product is≥2.0mm,conforming to IEC62109-2-2011
● Save the power consumption of the whole machine, and reduce the coil voltage to keep working after starting
● UL insulation system:Class F
● Environment-friendly product(RoHS compliant)

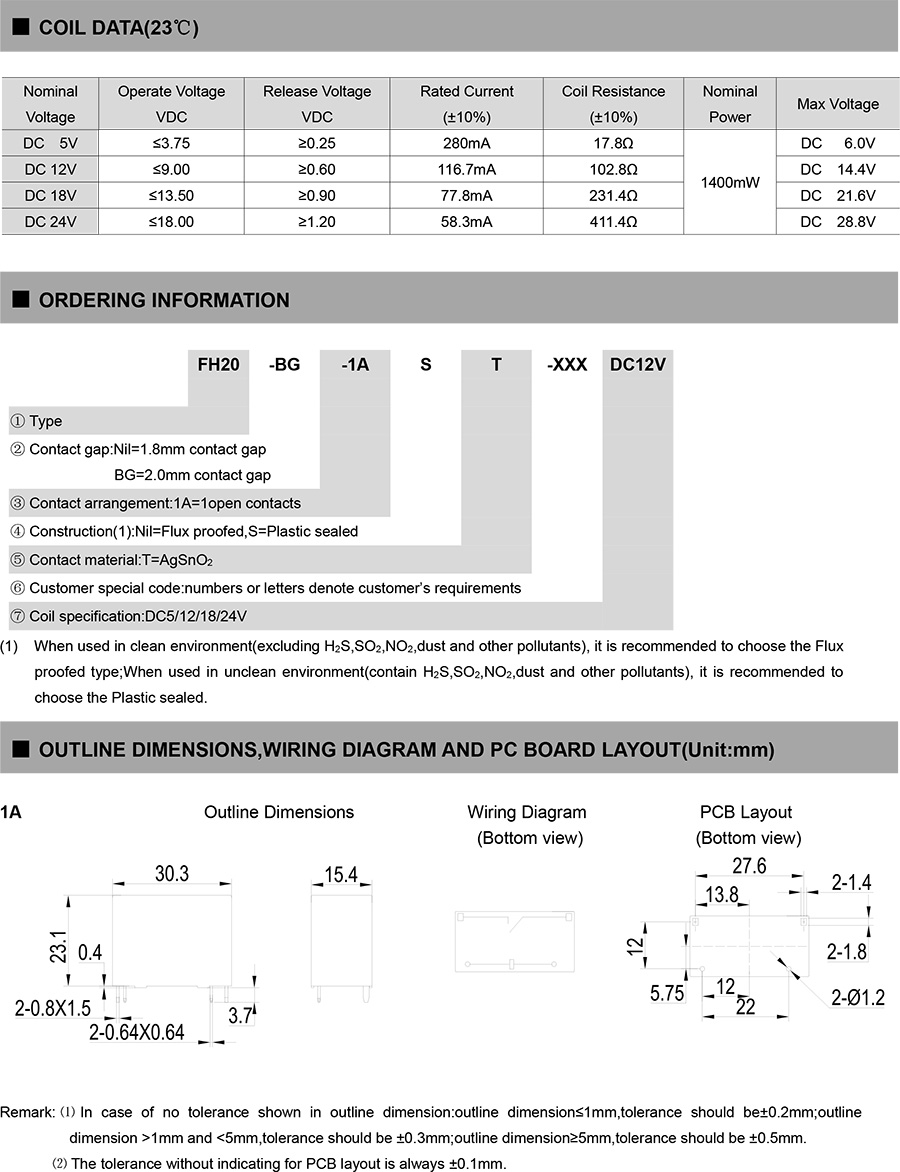

● Outline Dimensions:(30.3×15.4×23.1)mm
● Main application:New energy and PV industry?EV Charger
